Quick Details

  • Condition: New
  • Type: Paper Folding Machine
  • Computerized: Yes
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: Victory
  • Model Number: HSZB
  • Voltage: 220V/380V
  • Power(W): 10Kw
  • Dimension(L*W*H): 3200*1700*2000mm
  • Weight: 2500Kg
  • Certification: CE,ISO,SGS
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • name: paper glass making machine

Packaging & Delivery

Packaging Details The paper glass making machine will be packaged with export standard wooden case.
Delivery Time 20days when make sure the paper glass making machine

Specifications

paper glass making machine
Main parts are from oversea countries to improve the quality of the machine.


Product Description

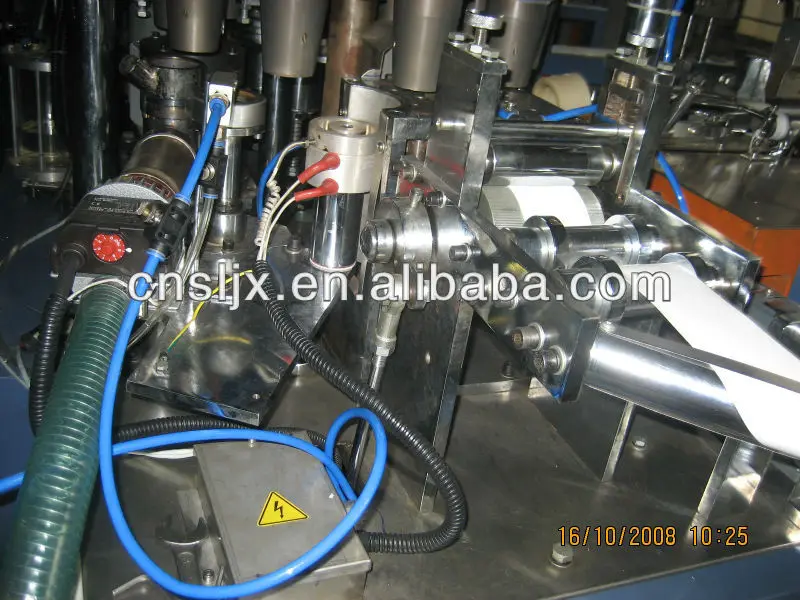

   paper glass making machine

The speed of this model high speed paper cup machine is 70-80/min and sealing system is adopted ultrasonic sealing.

MACHINE DESCRIPTION

High- speed paper cup machine is our latest machine, which is made by us base on our 20 years manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in china. Thanks to the sealing station is adopted ultrasonic sealing, so this model machine can produces various cups for hot and cold beverages; Ice cream, yoghurts, soups and snacks using single side or double sides PE coated paper. As one of our most popular models, it has its own compact structure, the machine runs steadily and fastly, finished cup with good quality, lowest waste percentage and less noisy, it is the best choice for making any type paper cups.



CHARACTERISTICS

1)The material of cup mould is adopted aluminum instead of carbon steel,owing to the aluminum material is light than carbon steel so it assure the machine running faster than the general paper cup machine.

2)The 90degree revolve transfer cup. It make the forming cup 100% to transfer to mould, reduce the rate of wasting.

3)The cup bottom can be transferred by one time. It mean the cup bottom can be transfer to cup inside, with highly exactness, reduce the wasting when transfer the second time.

4)Revolve curling bottom. It reduce the touch about cup bottom printing and make the bottom curling equality. It will not destroy the printing surface and the two sides PE paper bottom surface.

5)The parts of machine with nice craftwork. It make sure every part can exchange by each other.

6)Tks to the bolwing air system,the finished paper cups are blowing to certain place to stacking THROUGH a piece of windpipe.

MAIN TECHNICAL PARAMETER

Model

HSZB-1 model high-speed paper cup machine

HSZB-2 model high-speed paper cup machine

Production capacity

70-80PCS/min

70-80PCS/min

Required paper

150-400gsm Single Side PE Paper or Double Sides PE Paper

200-400gsm Single Side PE Paper or Double Sides PE Paper

Cups Range

(A)Top Dia: 60 -125MM ,(B)Height:60-190MM (C)Bottom Dia: 50 -97MM , (D)Knurling:5 -11 MM

(A) Top Dia:90 -160MM ,(B)Height:60 -190MM (C)Bottom Dia: 80 -130MM , (D)Knurling:6 -11 MM

Total power

380V 50HZ 12KW

380V 50HZ 12KW

Air supply requirement

Working pressure: 0.5-0.7working gas volume: 0.8m3 /per minute

Working pressure: 0.5-0.7working gas volume: 0.8m3 /per minute

Weight

2300 kg

2600kg

Overall dimensions (L*W*H)

3200*1700* 2000mm

3200*1700* 2000mm
